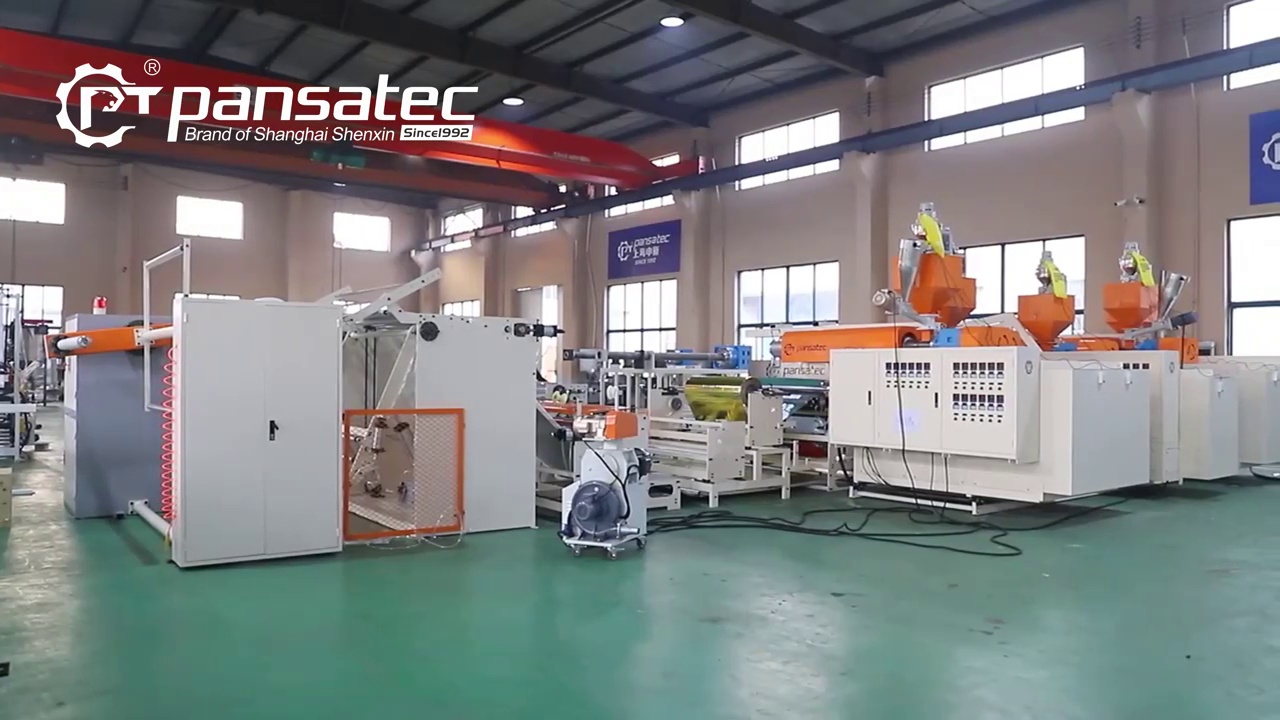

Seven-Layer Laminated Air Bubble Film Machine

● Over 30+ years manufacturing and innovating assist win your business
● From plan to installation, comprehensive service

Seven-Layer Laminated Air Bubble Film Machine

description1

Zipper closure 1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying fabric for superior performance. REGULAR FIT - US standard sizes. An athletic fit that sits close to the body for a wide range of motion, designed for optimal performance and all day comfort. FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in place during workout

Product Specifications

Features:

● We provide customized machine solutions to meet your needs.
● Lamination material include aluminum MPET, PE coated Kraft Paper, PE film, PE foam, PE coated anti-static film,PE coated non-woven fabric and other PE coated materials.
● Automatic cutter and rewinder to give you seamless production experience.

Sectional view:

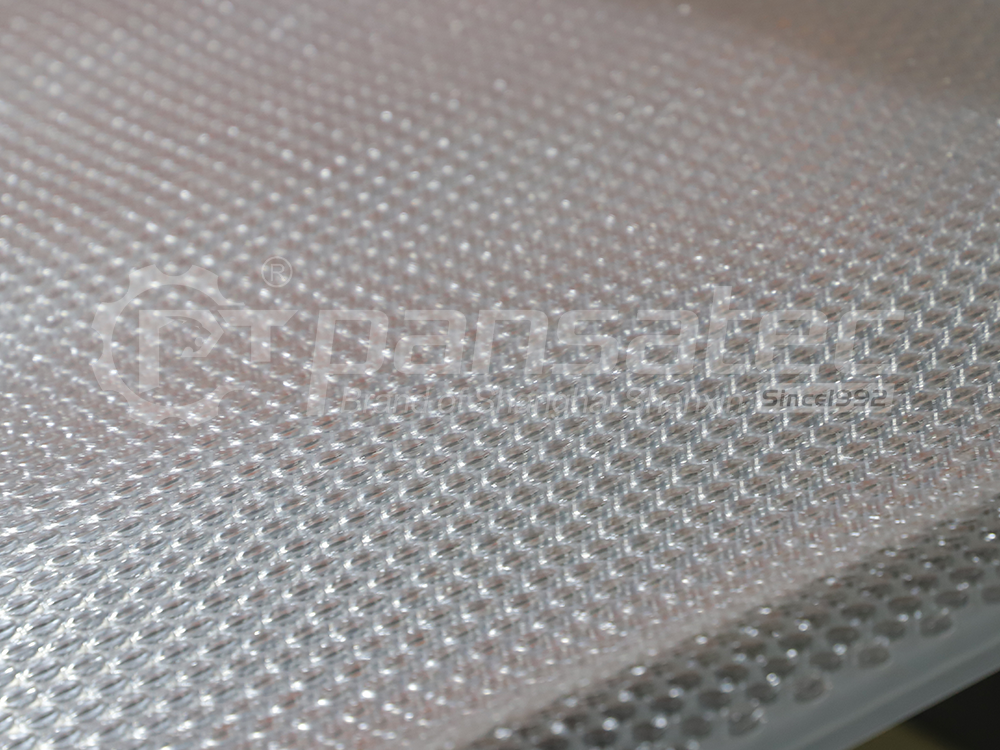

You Could Use This Machine to Produce:

3D seven layers air bubble film production diagram:

Highlights
Reduce LDPE to around 10%, save material cost to a new level
Save energy >40%, by using infra-red heaters and permanent magnet motors
Better film eveness, grams per square meter tolerance <10%
Apply brand electric and mechanic parts to ensure machine stability

Product model parameters：

Bubble film width (mm)	1200	1600	2000	2600	3000
Model number	PT-L7S2-W1200	PT-L7S2-W1600	PT-L7S2-W2000	PT-L7S2-W2600	PT-L7S2-W3000
Material	LDPE/LLDPE/HDPE/PP
Line speed(m/hr)	600-2100	600-2100	600-2100	600-2100	600-2100
Capacity (kg/hr)	110-150	130-180	155-220	195-250	240-270
Thickness(g/m2)	70-300	72-300	76-300	78-300	80-300
Main 1 screw diameter(mm)	Ф75	Ф75	Ф80	Ф90	Ф120
Sub screw diameter(mm)	Ф50	Ф65	Ф65	Ф75	Ф80
Main 2 screw diameter (mm)	Ф75	Ф75	Ф80	Ф90	Ф120
Heating power (kw)	118	133	175	220	276
Operation.power(kw)	57	69	80	112	128
DimensionL(m)xW(m)xH(m)	16x5.5x3.3	16 x 6.0 x3.3	17x6.5x3.3	17.5x7.5 x3.3	19x8.5 x3.3
